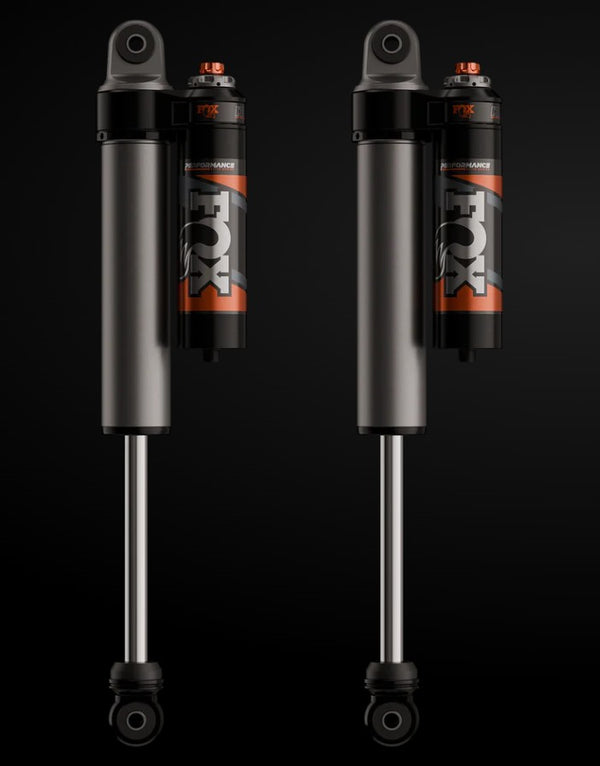

FORD SUPER DUTY | 2.5 PERFORMANCE ELITE SERIES SKU: 883-26-098

PART NUMBER 883-26-098

FEATURES 2.5" impact-extruded and CNC-machined 6061-T6 Type III anodized aluminum body; 7/8" hard chrome-plated steel shafts; Redundant sealing pack system; 2.5" smooth bore and honed seamless alloy reservoir with Dual Speed Compression (DSC) adjuster; Unlock all travel available in jounce and droop positions; Maximize comfort and control through any terrain; Remote reservoirs are mounted to clear aggressive tires at full lock; Aluminum shock bodies and external reservoirs efficiently dissipate heat by increasing oil capacity; Larger, high flow piston increases bottom-out resistance and damping in any environment

SERIES Performance Elite

TRAVEL 12.48

REAR LIFT HEIGHT 2-3.5

BODY 2.5" impact extruded and CNC machined 6061-T6 Type III anodized aluminum body

RESERVOIR 2.5" smooth bore and honed seamless alloy reservoir with Dual Speed Compression (DSC) adjuster

SHAFT 7/8" hard chrome plated steel shafts

PISTON Larger, high flow piston increases bottom-out resistance and damping in any environment

VALVING Vehicle-specific valving to maximize performance

SEALS Redundant sealing pack system main seal, wiper seal, scraper seal

EXTENDED LENGTH 32.33

COMPRESSED LENGTH 19.85

TOP MOUNT Eyelet

BOTTOM MOUNT Eyelet
