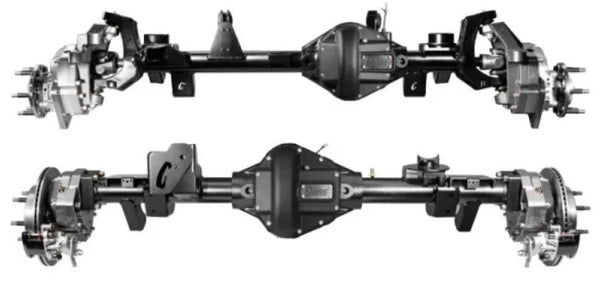

Currie 44 Hybrid Portal Front Axle:
- Currie 44 High-Pinion Center Section with Thick Walls and Webbing
- 3 x .5 in. Wall DOM Axle Tubes
- Forged 05+ Superduty UD60 1-Ton Inner Knuckles and Ball Joints
- 74Weld Sealed Chromoly Upper Ball Joint
- 1480 Currie 2-Piece Inner 35 Spline Axle
- 1480 Forged 1-Piece 35 Spline Stub shaft
- 71-Inch Effective Width with Recommended Wheel Offset (See Notes)
- Satin Black Powder Coat Finish for Long Lasting Protection

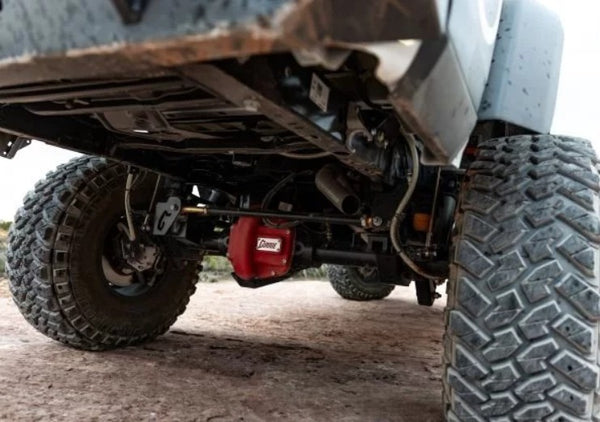

Currie HD60 Portal Rear Axle:
- Currie HD60 Center Section with Thick Walls and Webbing
- 3.5 in. Diameter, .375 in. Wall DOM Axle Tubes
- 35-Spline Full-Floating 4340 Chromoly Axles
- 71-Inch Effective Width with Recommended Wheel Offset (See Notes)
- Satin Black Powder Coat Finish for Long Lasting Protection

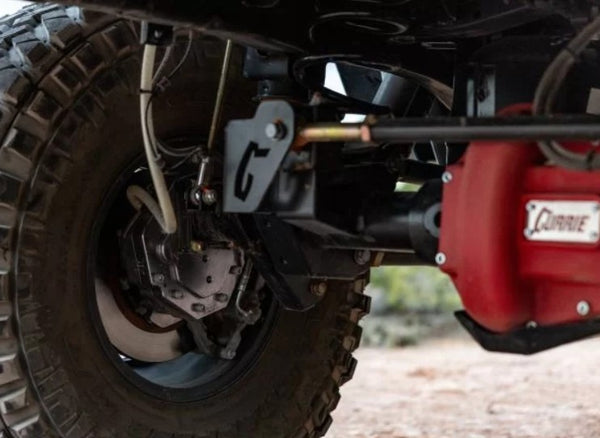

74Weld Portals:
- 4-Gear Portal Design for Ultimate Strength and Reliability
- Provides 3.9-Inches of Axle Lift for Maximum Ground Clearance
- Provides 22% Gear Reduction to Reduce Drivetrain Stress
- 14 in. Front and 13.750 in. Rear Vented Rotors Provide Abundant Stopping Power
- Retains the Factory Front and Rear Brake Calipers
- 1-Ton, 8 Lug Unit Bearings with JK/JL/JT Compatible ABS Tone Ring
The Currie 44/60 Hybrid Portal Axles are complete bolt-in axle assemblies with all required brackets and mounts in place. The vehicle’s factory rear driveshaft will require modification or replacement to accommodate the larger 1350 series u-joint and 60 series housing. New 8-lug wheels are required.
Brakes: For the JK Portal Axle package, you must also purchase the Wilwood Aero6 Front Brake Package. Factory brakes are NOT compatible.
Front Axle Disconnect (FAD): This axle assembly eliminates the factory FAD and requires a computer programmer, such as the Tazer Mini or Tazer Lite, to disable the factory sensor and turn off the FAD warning message
Wheel Bolt Pattern and Offset: Requires 8 x 6.5 (8 x 165.1 mm) bolt pattern wheels. We strongly recommend a 25 mm positive offset (approximately a 5.5-inch backspace)
Overall Width: The axle width with portals installed is 73.25 inches. The effective overall width with a 25 mm positive offset wheel is 71 inches.
Vehicle Lift: If using the factory height suspension or a leveling kit without bump stop spacers, an aftermarket track bar is required to clear the differential cover. The RockJock 4×4 track bar RJ-9120FJLF provides ample clearance.

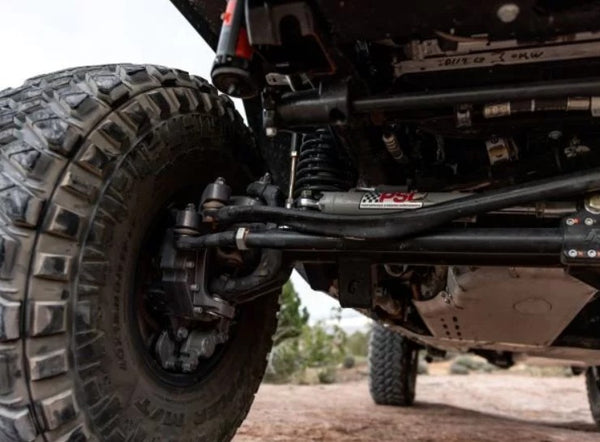

Tie Rod: Includes SteerSmarts Pro Series HD Tie Rod.
Tire Size: Up to 42-inches
